Sensor code CMS-405-N-F

Category: U-Shaped Optical Sensors

SENSOR TYPE	Fork type optoelectronic sensor
HOUSING TYPE	FORK TYPE 5mm GAP
HOUSING MATERIAL	ABS

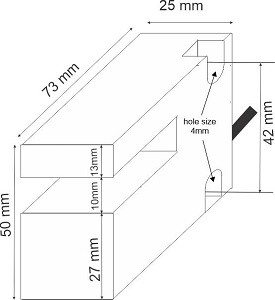

HOUSING SIZE	50x73x25 mm
NUMBER OF WIRES	4
OUTPUT STAGE	NPN TRANSISTOR(OPEN COLLECTOR)
OUTPUT FUNCTION	NO+NC
LIGHT SOURCE	WHITE LED
OPERATING VOLTAGE	10…30VDC
RATED OUTPUT CURRENT	250 mA
TEMPERATURE RANGE	-20…+60 °C
MAX SWITCHING FEREQUENCY	100 Hz
OPERATING INDICATOR	RED LED
MAX NOLOAD CURRENT	25 mA
MAX OUTPUT DROP VOLTAGE	2 V
INFLUENCE PROTECTION	IEC IP66(DIN 40050)
REVERS VOLTAGE PROTECTION	protected
PICK VOLTAGE PROTECTION	protected
SHORT CIRCUIT PROTECTION	NOT protected
ELECTRICAL CONNECTION	PVC CABLE,3X0.25,1.5m
SENSITIVITY ADJUST	Multi-turn potentiometer

SENSOR TYPE	Fork type optoelectronic sensor
HOUSING TYPE	FORK TYPE 5mm GAP
HOUSING MATERIAL	ABS
HOUSING SIZE	50x73x25 mm
NUMBER OF WIRES	4
OUTPUT STAGE	NPN TRANSISTOR(OPEN COLLECTOR)
OUTPUT FUNCTION	NO+NC
LIGHT SOURCE	WHITE LED
OPERATING VOLTAGE	10…30VDC
RATED OUTPUT CURRENT	250 mA
TEMPERATURE RANGE	-20…+60 °C
MAX SWITCHING FEREQUENCY	100 Hz
OPERATING INDICATOR	RED LED
MAX NOLOAD CURRENT	25 mA
MAX OUTPUT DROP VOLTAGE	2 V
INFLUENCE PROTECTION	IEC IP66(DIN 40050)
REVERS VOLTAGE PROTECTION	protected
PICK VOLTAGE PROTECTION	protected
SHORT CIRCUIT PROTECTION	NOT protected
ELECTRICAL CONNECTION	PVC CABLE,3X0.25,1.5m
SENSITIVITY ADJUST	Multi-turn potentiometer
